KELSONS can provide standard models and tailor made fettling equipment solution to your specific needs using experience gained from large & varied installed base. KELSONS have developed various Shot Blast Machine with multiple parting lines for medium & small jobbing foundries.

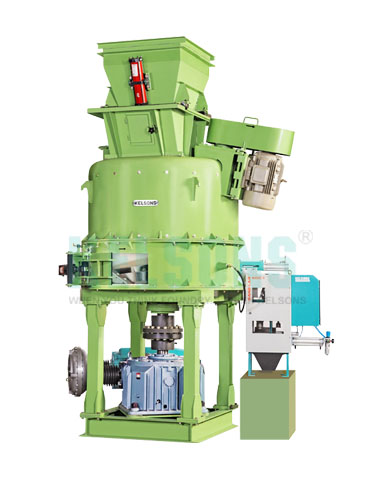

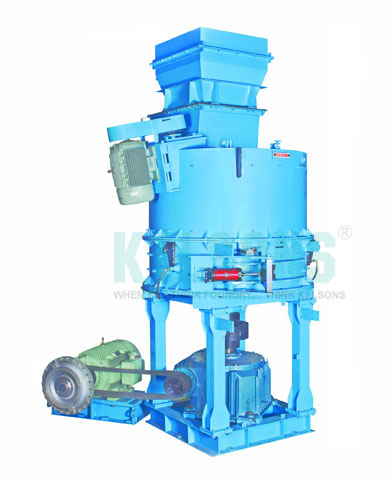

KELSONS INTENSIVE MIXER ( Equivalent to German Standards )
SALIENT FEATURES- Study construction
- Easy for preventive and routine maintenance
- Inside lining of stainless steel
- All pulleys are tapered lock pulleys
- Guide vanes for pushing the sand in spin action below the roters
- Rotor blades Fine, Angular and carbide tips brazed
- Homogeneous sand mixing - Excellent sand quality - uniform sand strength
- Environmentally friendly operation with no dust leakage or loss of fines
- High Casting Quality
- Fully automatic control panel
- Auto water - Dozing Panel
KESONS INTENSIVE MIXER Range Start 100 Kg to 600 Kg.
Model - We are having 5 different types of Model

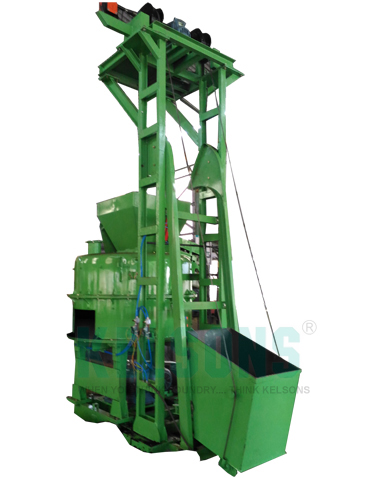

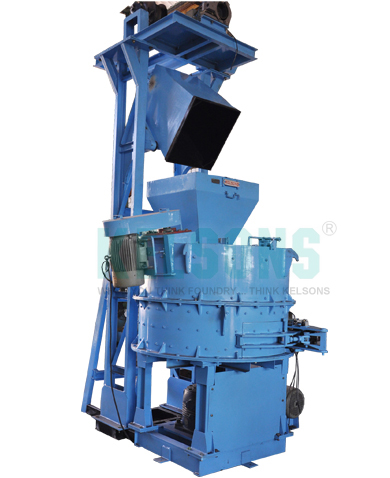

1. Intensive Mixer With Skip Charger - Capacity - 100 to 600 KG
KELSONS MODELS |
||
Intensive Mixer With Skip Charger - Fully Automatic |
KIM-100KG | KIM-300KG |
| KIM-250KG | KIM-600KG | |
| KIM-300KG | ||
2. Sand Muller - Capacity - 150KG TO 1000KG
KELSONS MODELS |
||
SAND MULLER WITH SKIP CHARGER |
KMU-150KG | KMU-500KG |
| KMU-250KG | KMU-1000KG | |
| KMU-300KG | ||
| Technical Data | |||||
| Type | KIM-1900-150 | KIM-750-100 | KIM-600-75 | KIM-500-40 | KIM-300-20 |
| Dimensions in mm | |||||
| A Diameter | 1900 | 1900 | 1600 | 1600 | 1300 |
| B Height of Mixer | 4200 | 4065 | 3870 | 3730 | 2425 |
| Batch Speciffications | |||||
| Batch Capacity (Max.) | 1000 kg | 750 kg | 600 kg | 500 kg | 300 kg |
| Cycle time | 90-120 S | 90-120 S | 90-120 S | 90-120 S | 90-120 S |
| Batch / Hour | 36 | 36 | 36 | 36 | 30 |
| Mixing Rate | 30 T/h | 22.5 T/h | 21 T/h | 18 T/h | 9 T/h |
| Vessel Cap. Uded+New Sand | 1.0M3 | 1.0M3 | 0.7M3 | 0.7M3 | --- |
| Mixing Power | |||||
| Drive Power (HP) | 150 | 100 | 75 | 40 | 20 |
| Blenders Power | |||||
| Drive Power (HP)/Number | 30+32/2 | 20+20/2 | 30/1 | 20/1 | 7.5/1 |
| Total Weight : Approx | 12000 kg | 10500 kg | 700 kg | 5500 kg | 2500 kg |
| Optional Accessories | |||||
| Ceramic Lining, Mechanical Charger, Load Cell System & Control Panel. | |||||

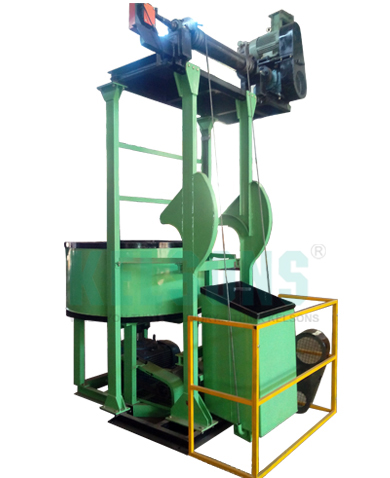

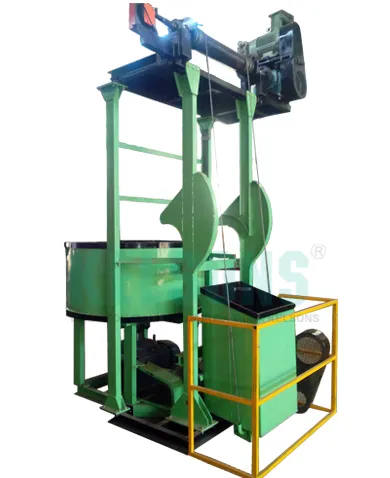

Sand Muller - Capacity - 150KG TO 1000KG (1 Ton)
KELSONS MODELS |
|
SAND MULLER WITH SKIP CHARGER |
KMU-150KG |
| KMU-250KG | |
| KMU-300KG | |
| KMU-500KG | |
| KMU-1000KG | |
